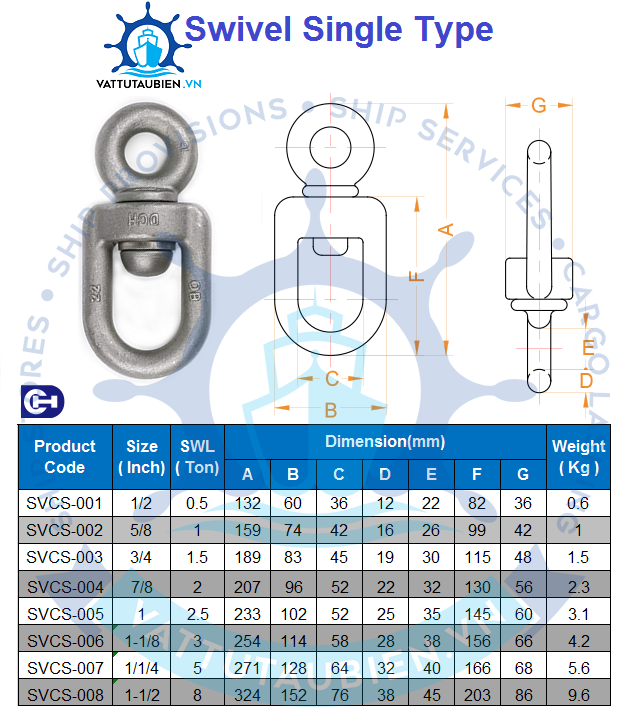

Swivel Single Type

Swivel Single Type will prevent wire rope from transferring its normal twisting motion to the item being lifted.

Swivels can be supplied with all combinations of endfittings.

Never apply more force than the swivel's assigned Safe Working Load(SWL/WLL) rating. and the Working Load Limit(WLL) should be applied be applied be straight pull and overloads should not be made



Swivel Single TypeSwivel Single TypeSwivel Single Type
