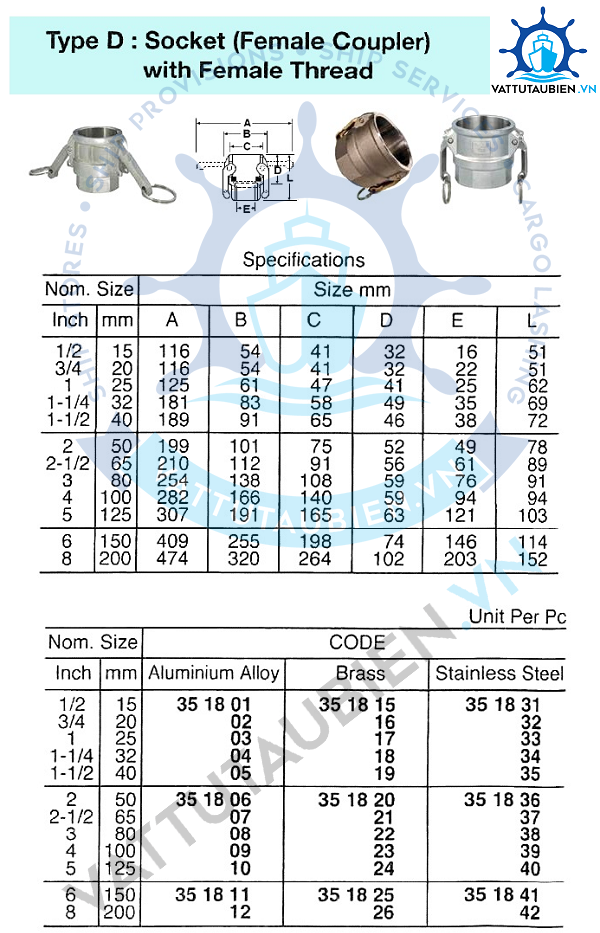

Cam And Groove Couplings-Type D
Cam And Groove Couplings -Type D are generally used with the same size Type A adapters, however, Type E and F adapters are compatible, as well as the DP (Dust Plug).
The Cam And Groove Couplings-Type D is a simple and effective system to establish direct and perfect tightness between two elements (hose-hose, hose-fixed point).
The connection is easily made by inserting the adaptor (male part) into the coupler (female part).
The locking is assured by the cams of the coupler.
The tightness is made by the constant and uniform pressure of the adaptor on the gasket of the coupler.
Material : Aluminium Alloy , Brass , Stainless Steel
Sizes : 1/2", 3/4", 1", 1-1/4", 1- 1/2", 2", 2-1/2", 3", 4", 5", 6",8"
