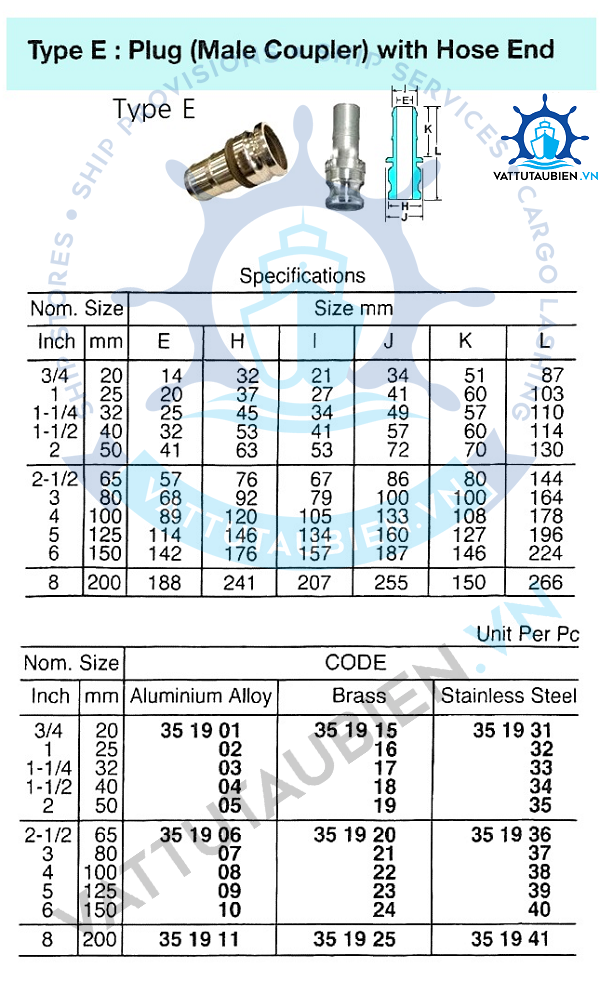

Cam And Groove Couplings -Type E

  • Cam And Groove Couplings -Type E are generally used with the same size Type C couplers, however, Type B and D couplers are compatible, as well as the DC (Dust Cap).
  • The Cam and groove coupling is a simple and effective system to establish direct and perfect tightness between two elements (hose-hose, hose-fixed point).
  • The connection is easily made by inserting the adaptor (male part) into the coupler (female part).
  • The locking is assured by the cams of the coupler.
  • The tightness is made by the constant and uniform pressure of the adaptor on the gasket of the coupler.
Material : Aluminium Alloy , Brass , Stainless Steel
Sizes: 1/2", 3/4", 1", 1-1/4", 1- 1/2", 2", 2-1/2", 3", 4", 5", 6",8"
Cam And Groove Couplings -Type E
