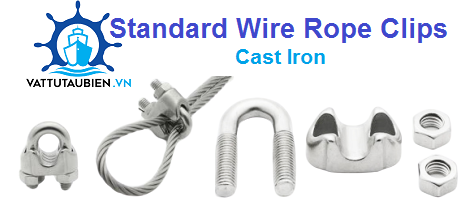

Wire Rope Clip Cast Iron / Standard Wire Clips Cast Iron
- Made of cast iron and designed to hold one wire rope tight and securely to another.When ordering,please special whether galvanized or black wire clips are required.
- Also,please specify the diameter of the wire rope to be used with the wire rope clip.
- Wire rope clips are used to connect two cable ends together or make a wire rope eye and are available in drop forged or malleable steel.
- They are comprised of a saddle, U-bolt and two hex nuts. Wire rope clamps are an alternative to swage sleeves and an economical way to make cable assemblies in the field.
- Drop forged U-bolt clamps and drop forged fist grip type clips should be used for critical applications or any type of overhead lifting and suspension.
- DO NOT use a malleable wire rope clip for these applications. Typical wire rope assemblies require at least two or three wire rope clamps, but more may be required depending on the diameter of the cable.
