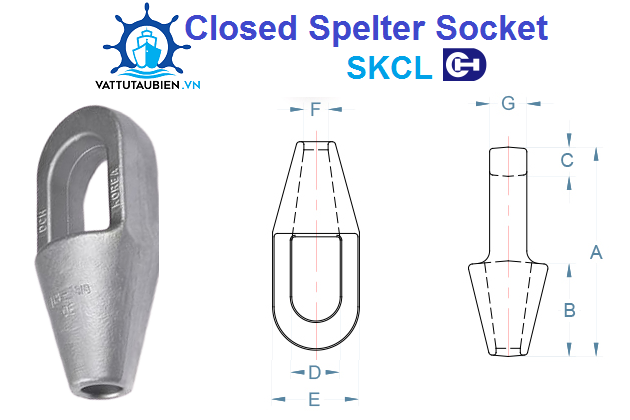

Wire Rope Socket Closed Type

0902948498

Product name : Wire Rope Socket Closed Type / Closed Spelter Socket-SKCL

Brand name : Daichang

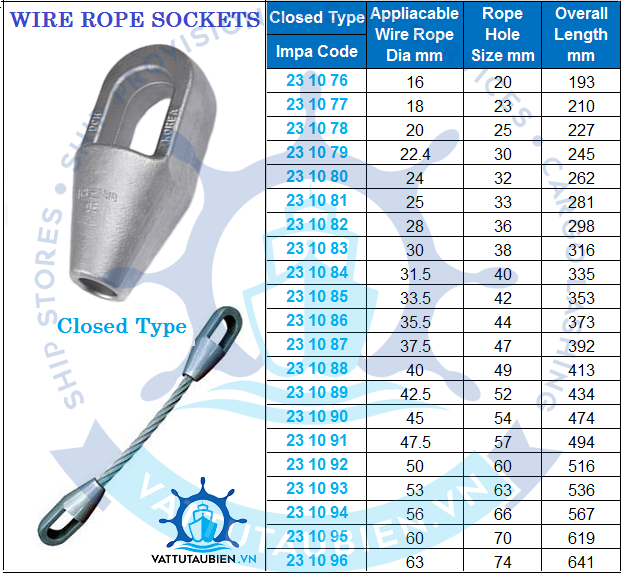

Impa : 23 10 76 ~ 23 10 95

Material : 1/2 ~ 1-1/2" (Forged carbon steel), 1-5/8 ~ 3-1/2" (Cast alloy steel)

Test Load : Proof Load = SWL × 2, Breaking Load = SWL × 5

Surface : Self Color or Hot Dip Galv

Reference : Federal specification, RR-S-550D

Available certificate

Wire Rope Socket Closed Type is a type of anchoring device for wire rope. Used in many areas including; oil platforms, bridge construction and towing.
A Wire rope socket is for permanent fixing to a wire rope.
They provide the rope with a solid fitting for easier anchoring.
Sockets are available in a variety of styles. In order to ensure they are suitable for particular applications.
The main types are spelter sockets and swage sockets.
Both types are available in open and closed formats. Poured sockets are another type which use resins to bond to the wire.
